The ZY-03 dual engine three-segment sit-stand desk frame features stable rectangular columns, synchronized electric movement and an adjustable 1100-1600 mm span for banking workstations, financial offices and commercial furniture projects.

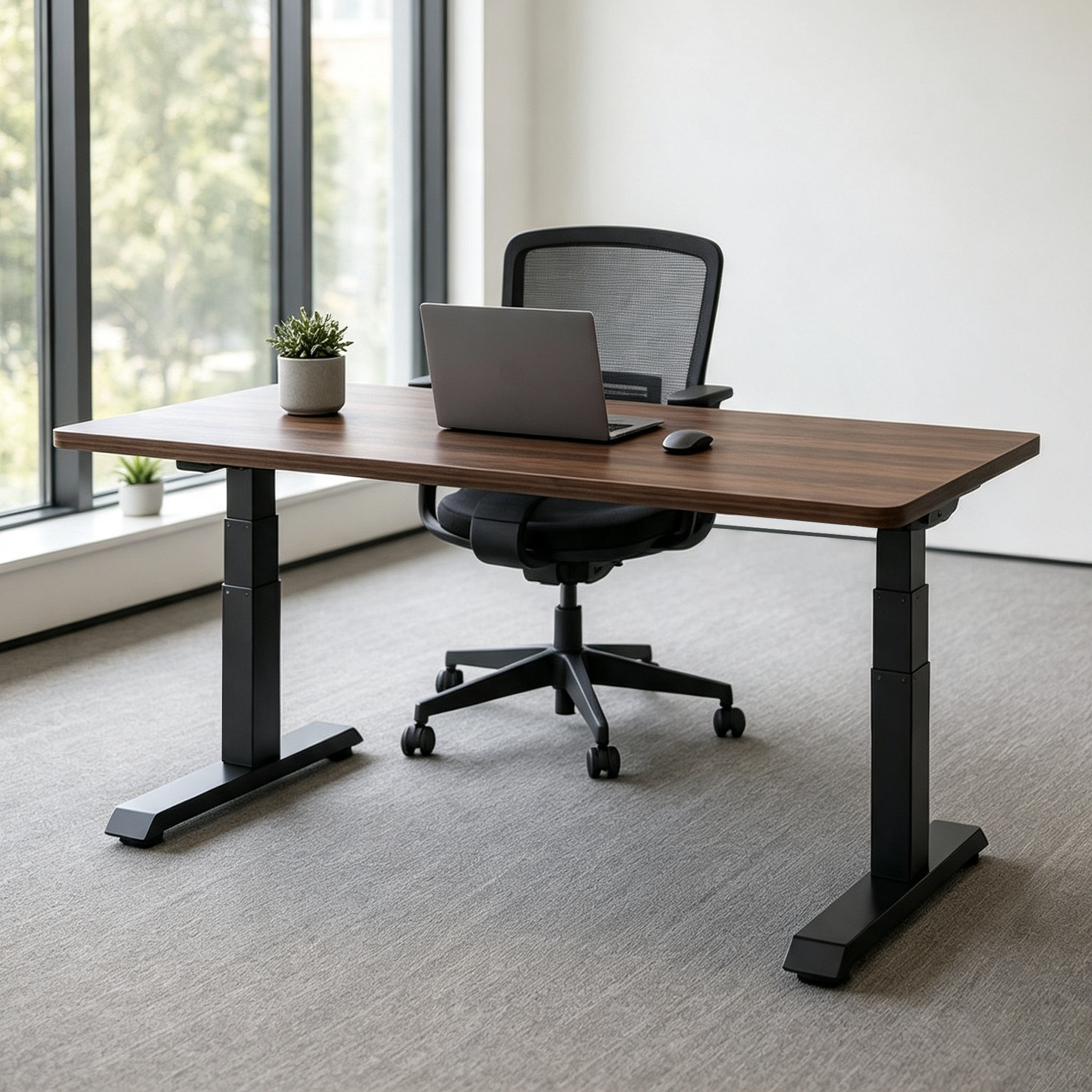

ZY-03 Dual Engine Three-Segment Sit-Stand Desk Frame
Created for banking and financial office environments, this ZY-03 frame combines rectangular three-segment columns with dual-drive lifting and a stable T-foot layout. The frame-only supply supports institution-specific desktops, cable systems and branded procurement programs.
Product Attributes
| No. | Attribute | Specification |
|---|
| 1 | Model | ZY-03 |
| 2 | Category | Dual motor standing desk |
| 3 | Product type | Sit-stand desk frame |
| 4 | Drive arrangement | Dual engine / dual motor |
| 5 | Column design | Three-segment telescopic |
| 6 | Adjustment method | Electric lifting |
| 7 | Height range | 620-1270 mm |
| 8 | Width range | 1100-1600 mm |
| 9 | Foot length | 600 mm |
| 10 | Upper support depth | 500 mm |
| 11 | Main material | Steel |
| 12 | Color shown | Black |
| 13 | Finish | Powder-coated |
| 14 | Base configuration | T-shaped feet |
| 15 | Column profile | Rectangular |
| 16 | Crossbeam | Telescopic center support |
| 17 | Supply scope | Desk frame only |
| 18 | Desktop status | Not included |
| 19 | Worktop compatibility | Multiple rectangular desktop formats |
| 20 | Lifting synchronization | Coordinated two-column movement |
| 21 | Ergonomic modes | Sitting and standing |
| 22 | Stability design | Rectangular columns and wide floor base |
| 23 | Floor protection | Protective foot pads |
| 24 | Level adjustment | Optional leveling glides |
| 25 | Cable accessory support | Compatible with trays and channels |
| 26 | Control system | Configured to ordered electronics |
| 27 | Hand controller | Basic or programmable |
| 28 | Memory presets | Optional |
| 29 | Anti-collision | Optional |
| 30 | Lock function | Optional |
| 31 | USB charging | Optional |
| 32 | Voltage | Configured for destination market |
| 33 | Plug standard | Country-specific option |
| 34 | Assembly | Knock-down bolted construction |
| 35 | Installation kit | Available with frame |
| 36 | Manual | English instructions available |
| 37 | Packing | Protective export carton |
| 38 | Logistics format | Flat packed |
| 39 | OEM support | Logo and carton customization |
| 40 | ODM support | Available for institutional projects |
| 41 | Color customization | Available subject to MOQ |
| 42 | Sample evaluation | Available by arrangement |
| 43 | Buyer profile | Banking furniture suppliers, importers and contractors |
| 44 | Primary application | Banking workstations |
| 45 | Quality control | Pre-shipment inspection available |
| 46 | Service terms | Lead time, spare parts and warranty by contract |
Project Benefits
The adjustable beam supports different workstation widths while the stable rectangular column design presents a professional appearance for financial institutions. Buyers can select market-specific power systems, controllers and private-label cartons.
Application Scenarios
Bank branches, financial service offices, insurance operations, back-office workstations and institution-wide furniture upgrades.
