The ZY-03 double-motor 3-section standing table frame features an expandable 1100-1600 mm beam and a 620-1270 mm lift range for large corporate fit-outs, headquarters projects and high-volume contract furniture supply.

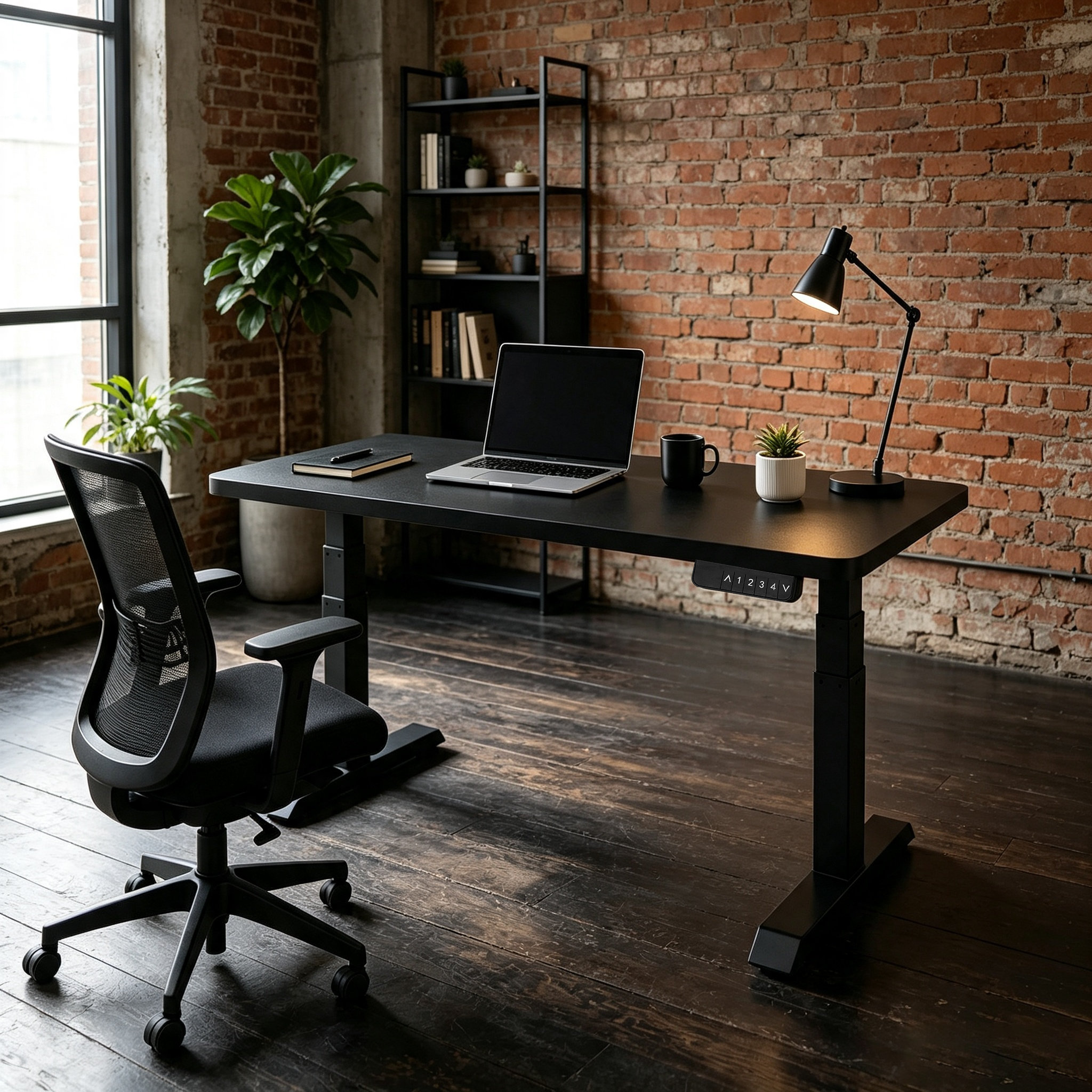

ZY-03 Double-Motor 3-Section Standing Table Frame
For large corporate fit-outs, the ZY-03 provides a scalable frame platform with synchronized double-motor lifting, three-section columns and an expandable center beam. The frame-only design allows contractors to specify different desktop finishes while maintaining one consistent lifting base.
Product Attributes
| No. | Attribute | Specification |
|---|
| 1 | Model | ZY-03 |
| 2 | Category | Dual motor standing desk |
| 3 | Product type | Standing table frame |
| 4 | Drive system | Double-motor electric drive |
| 5 | Column stages | Three-section telescopic |
| 6 | Adjustment function | Electric height lifting |
| 7 | Height range | 620-1270 mm |
| 8 | Expandable width | 1100-1600 mm |
| 9 | Foot length | 600 mm |
| 10 | Upper support depth | 500 mm |
| 11 | Frame material | Steel |
| 12 | Standard color | Black |
| 13 | Surface treatment | Powder coating |
| 14 | Base style | T-shaped feet |
| 15 | Column shape | Rectangular |
| 16 | Center beam | Expandable telescopic support |
| 17 | Supply configuration | Frame only |
| 18 | Desktop included | No |
| 19 | Desktop compatibility | Multiple rectangular worktop formats |
| 20 | Lifting movement | Synchronized two-side operation |
| 21 | Work modes | Sitting and standing |
| 22 | Stability design | Wide feet and centered frame structure |
| 23 | Floor protection | Protective pads |
| 24 | Leveling option | Adjustable glides |
| 25 | Cable management readiness | Compatible with project cable trays |
| 26 | Control box | Configured to final specification |
| 27 | Hand controller | Basic or programmable |
| 28 | Memory presets | Optional |
| 29 | Anti-collision | Optional |
| 30 | Lock function | Optional |
| 31 | USB port | Optional |
| 32 | Electrical configuration | Destination-market option |
| 33 | Plug standard | Country-specific |
| 34 | Assembly format | Knock-down bolted construction |
| 35 | Installation hardware | Available as a complete kit |
| 36 | Manual | English version available |
| 37 | Packing style | Flat-pack export carton |
| 38 | Site logistics | Suitable for phased project delivery |
| 39 | OEM service | Logo and packaging customization |
| 40 | ODM service | Available for project standards |
| 41 | Custom finish | Available subject to quantity |
| 42 | Sample approval | Available before mass production |
| 43 | Target buyers | Fit-out contractors, importers and large furniture traders |
| 44 | Primary application | Large corporate fit-outs |
| 45 | Inspection | Pre-shipment quality inspection available |
| 46 | Commercial terms | Lead time, spare parts and warranty by agreement |
Fit-Out Advantages
The expandable beam allows one frame platform to serve different desktop sizes across departments. Flat-pack construction supports staging and installation, while optional controller and branding packages suit large corporate procurement programs.
Application Scenarios
Corporate headquarters, office towers, campus expansions, tenant fit-outs, multi-floor workstation installations and national workplace upgrades.
