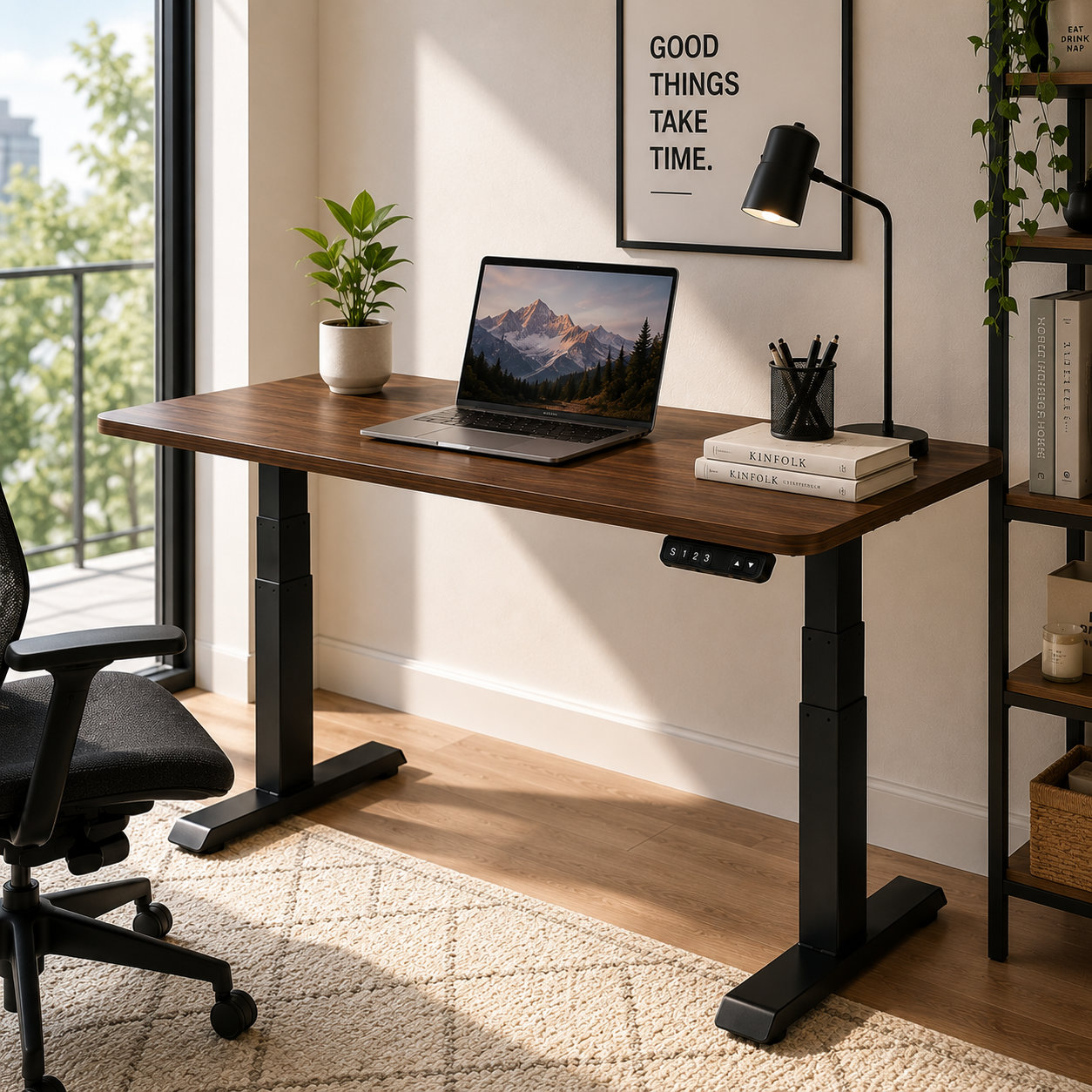

    ZY-03 Two-Motor Three-Level Sit-Stand Frame with Stable T-Foot Design for Command and Control Rooms
    ZY-03 Two-Motor Three-Level Sit-Stand Frame with Stable T-Foot Design for Command and Control Rooms
    ZY-03 Two-Motor Three-Level Sit-Stand Frame with Stable T-Foot Design for Command and Control Rooms
    ZY-03 Two-Motor Three-Level Sit-Stand Frame with Stable T-Foot Design for Command and Control Rooms
    ❤ Add to collection

  • ZY-03 Two-Motor Three-Level Sit-Stand Frame with Stable T-Foot Design for Command and Control Rooms

    The ZY-03 two-motor three-level sit-stand frame combines stable T-foot geometry, synchronized electric lifting and adjustable dimensions for command and control rooms, monitoring centers and large operational workspace projects.

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
    • Consultation
Description
The ZY-03 two-motor three-level sit-stand frame combines stable T-foot geometry, synchronized electric lifting and adjustable dimensions for command and control rooms, monitoring centers and large operational workspace projects.

ZY-03 Two-Motor Three-Level Sit-Stand Frame

Built for command and control environments, the ZY-03 provides an adaptable frame platform for monitoring and operational workstations. Two motors coordinate the three-level telescopic columns, while the stable T-foot structure and adjustable beam support different desktop layouts.

Product Attributes

No.AttributeSpecification
1ModelZY-03
2CategoryDual motor standing desk
3Product typeSit-stand workstation frame
4Motor systemTwo-motor electric drive
5Column structureThree-level telescopic
6Main functionElectric height adjustment
7Minimum height620 mm
8Maximum height1270 mm
9Adjustable frame width1100-1600 mm
10Foot length600 mm
11Upper support depth500 mm
12Frame materialSteel
13Standard colorBlack
14Surface finishPowder-coated
15Base designStable T-shaped feet
16Column profileRectangular
17Center supportTelescopic adjustable beam
18Supply formatFrame only
19Desktop includedNo
20Desktop compatibilityMultiple rectangular worktop sizes
21Lifting synchronizationCoordinated dual-side movement
22Working positionsSitting, perching and standing
23Stability conceptWide T-feet and centered beam support
24Floor protectionProtective pads or end caps
25Leveling optionAdjustable glides
26Cable management readinessCompatible with power, data and cable trays
27Control boxConfigured to ordered electronics
28Hand controllerBasic or programmable option
29Memory presetsOptional
30Anti-collisionOptional
31Controller lockOptional
32USB chargingOptional
33Power configurationDestination-market option
34Plug formatCountry-specific
35AssemblyKnock-down bolted construction
36Hardware kitAvailable
37ManualEnglish instructions available
38PackingFlat-pack export carton
39Project logisticsSuitable for phased site delivery
40OEM brandingAvailable for qualified orders
41ODM supportAvailable for operational workspace projects
42Custom finishAvailable subject to MOQ
43Target buyersProject integrators, importers and commercial furniture suppliers
44Primary applicationCommand and control rooms
45InspectionPre-shipment QC available
46Commercial termsLead time, spare parts and warranty by agreement

Operational Workspace Advantages

The broad height range supports different users and work shifts, while the adjustable beam accommodates varied console and desktop widths. Flat-pack logistics and optional controller packages suit phased installation and multi-room deployment.

Application Scenarios

Command centers, control rooms, monitoring stations, security operations centers, dispatch offices and infrastructure management facilities.
