The ZY-03 commercial dual motor 3-stage standing desk chassis combines synchronized electric lifting, stable steel construction and adjustable frame sizing for call-center workstations, operations rooms and large-scale office furniture procurement.

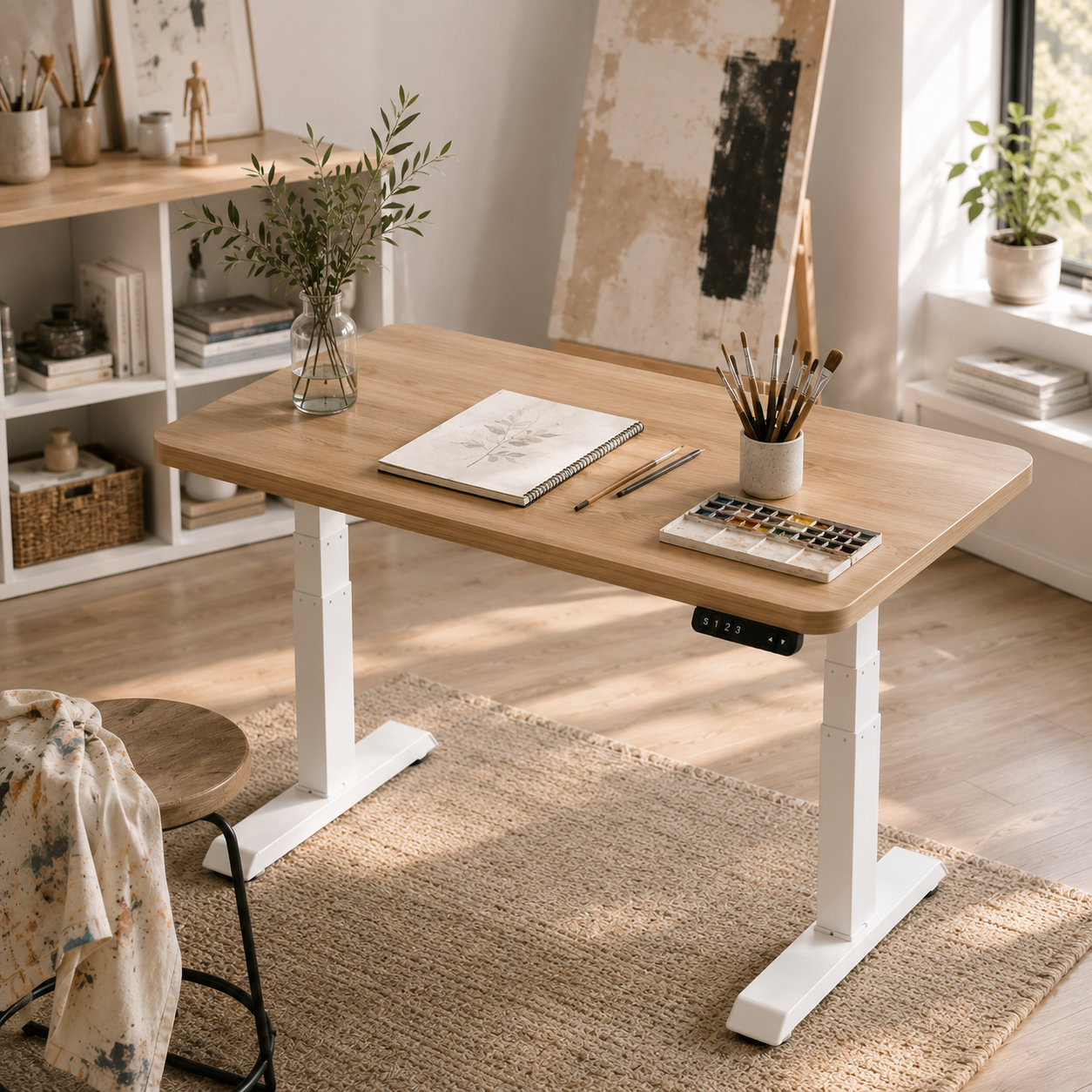

ZY-03 Commercial Dual Motor 3-Stage Standing Desk Chassis
Developed for call centers and operational workplaces, this ZY-03 frame provides a practical platform for high-volume workstation programs. Its adjustable width, wide lift range and frame-only configuration help trade buyers standardize the base while varying desktop finishes and layouts.
Complete Product Details
| No. | Attribute | Specification |
|---|
| 1 | Model number | ZY-03 |
| 2 | Category | Dual motor standing desk |
| 3 | Product type | Commercial standing desk chassis |
| 4 | Drive system | Dual motor |
| 5 | Column design | Three-stage telescopic |
| 6 | Operation | Electric height adjustment |
| 7 | Height range | 620-1270 mm |
| 8 | Width range | 1100-1600 mm |
| 9 | Foot length | 600 mm |
| 10 | Side support depth | 500 mm |
| 11 | Frame material | Steel |
| 12 | Standard color | Black |
| 13 | Surface treatment | Powder coating |
| 14 | Base architecture | T-shaped floor base |
| 15 | Leg profile | Rectangular |
| 16 | Crossbeam type | Expandable central beam |
| 17 | Supplied item | Desk frame only |
| 18 | Desktop | Not included |
| 19 | Worktop compatibility | Multiple rectangular desktop sizes |
| 20 | Lifting coordination | Synchronized two-column movement |
| 21 | Ergonomic modes | Sitting and standing |
| 22 | Stability feature | Wide T-feet and centered beam |
| 23 | Floor contact | Protective foot pads |
| 24 | Leveling | Optional adjustable glides |
| 25 | Cable routing | Compatible with under-desk cable systems |
| 26 | Control box | Matched to ordered electronics |
| 27 | Hand controller | Basic or programmable option |
| 28 | Preset memory | Optional |
| 29 | Anti-collision | Optional |
| 30 | Lock mode | Optional |
| 31 | USB port | Optional |
| 32 | Voltage format | Configured for destination market |
| 33 | Plug type | Country-specific option |
| 34 | Movement speed | Confirmed with final motor selection |
| 35 | Operating sound | Confirmed with final motor selection |
| 36 | Assembly structure | Knock-down bolted construction |
| 37 | Installation components | Hardware kit available |
| 38 | Assembly guide | English manual available |
| 39 | Packaging format | Flat-pack export carton |
| 40 | Warehouse suitability | Compact bulk storage |
| 41 | Freight suitability | Pallet and container shipment |
| 42 | OEM branding | Available |
| 43 | ODM service | Available for project adaptation |
| 44 | Custom finish | Available subject to MOQ |
| 45 | Custom packaging | Neutral or branded carton |
| 46 | Sample order | Available by arrangement |
| 47 | Buyer profile | Large traders, project dealers and importers |
| 48 | Main application | Call centers |
| 49 | Additional application | Operations rooms and service centers |
| 50 | Inspection and warranty | Confirmed under commercial agreement |
Benefits for Call-Center Projects
The adjustable frame span helps project buyers use several desktop widths without changing the lifting platform. Flat-pack delivery supports phased installation, while optional controller packages allow buyers to select the required level of functionality for different project budgets.
Typical Applications
Call centers, customer service departments, operations rooms, dispatch offices, technical support centers and multi-shift workplaces.
